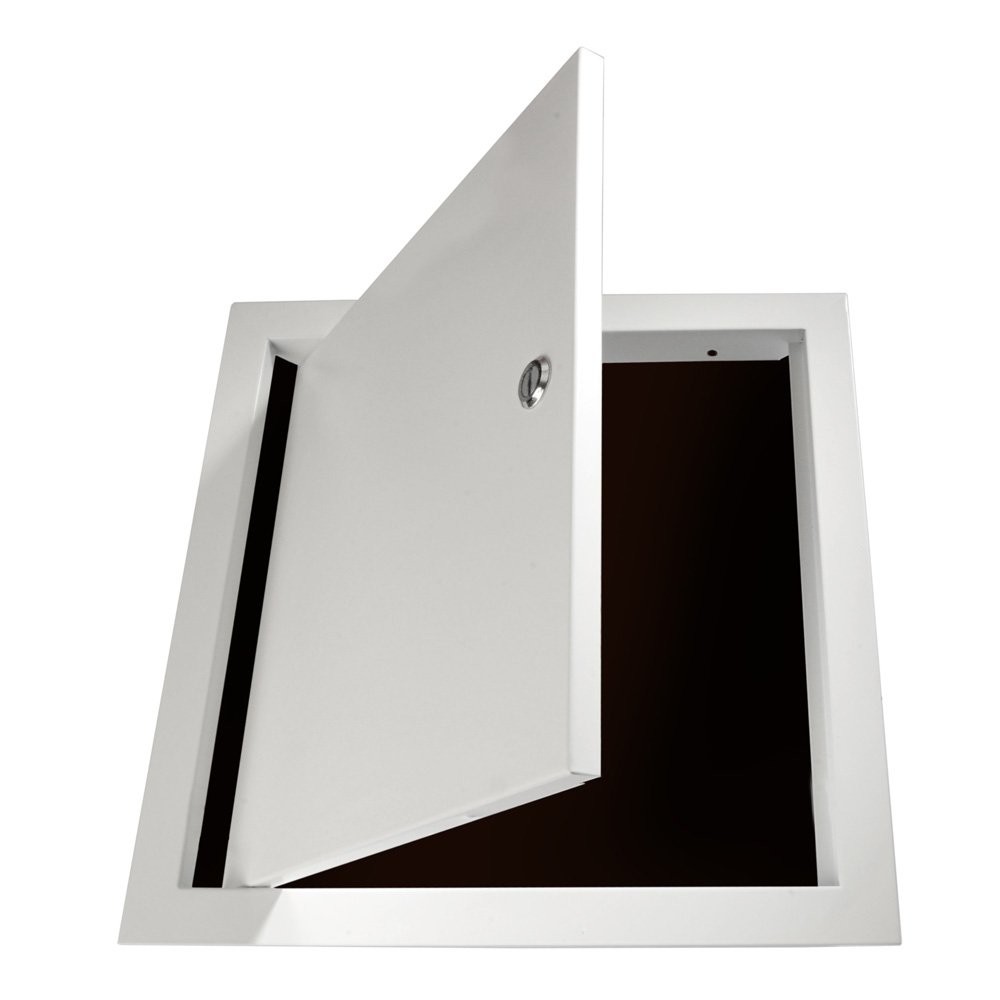

Standard Sizes 10x10 Aluminum Access Panel With Steel Hook

Basic Information
Place of Origin: Shanghai, China
Brand Name: XCMETAL
Certification: ISO9001
Model Number: XC-APA-009
Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Packed in box or carton with pallet
Delivery Time: 25-35 days after confirm order
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Matertial: Aluminum Frame Safety System: Steel Hook
Installation: Ceiling And Walls Color: Plain And Green Gypaum
Sizes: Standard Sizes Function: Moisture-proof
High Light:

10x10 Aluminum Access Panel

,

steel hook Aluminum Access Panel

,

standard sizes Extruded Access Panel

Aluminum Access Panel Of Aluminum Frame and Ceramic Tile Inlay Can Available





Description

Materials Extruded aluminum alloy (A6063)
Panel Aluminum alloy
Out frame High-quality extruded aluminum alloy(A6063) profile with 50mm flange
Surface Finish Powder-coated or anodized
Color of Powder Coated Standard - RAL 9016
Description

1. The frame is a high-quality extruded aluminum sheet with advantages of corrosion resistance and rigidity.

2. It consists out frame and inner pannel. The inner pannel is fixed to the out-frame by fastener one side and steel spring pins in the other side.

3. The panel can be easily open to allow for maximum flexibility in the installation, maintenance.



Standard Sizes (Special Sizes Available Upon Request)

MODEL SIZES(MM) Q’TY/BOX(PCS)
XC-APA-009-01 200*200 2
XC-APA-009-02 300*300 2
XC-APA-009-03 400*400 2
XC-APA-009-04 450*450 2
XC-APA-009-05 500*500 2
XC-APA-009-06 600*600 2





Instruction for Access Panel

1. Check the function of the access panel, cut a clean hole( per the access panel size exactly you have on the drywall or ceiling

2. Placing the access panel outer frame into the opening

3. Check alignment in the opening

4. Drill screws into the frame and gypsum board, fixing it.

5. Open and close the door to see the flexibility

6. Paste the visible screw hole

7. Well finished, close it.



CAUTION: MAKE SURE IT RESTS CLEANLY IN PLACE. BEFORE INSTALL, CHECK THE FUNCTION. ALIGN THE FRAME, CLAMP INTO PLACE AND THEN PILOT-DRILL
