Galvanized Steel Drywall Access Panel With Concealed Hinge

Basic Information
Place of Origin: Shanghai, China
Brand Name: XCMETAL
Certification: ISO9001
Model Number: XC-APS-011
Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Packed in box or carton with pallet
Delivery Time: 25-35 days after confirm order
Payment Terms: T/T, L/C
Supply Ability: 100,000 pcs per month
Features: Artistic Ceilings, Honeycomb Ceilings, Integrated Special: Blue Key Open And Close System
Weight: Light Shape: Square
Thickness: 0.5-1.0mm Material: Galvanized Steel
Surface Treatment: Powder Coating Frame: Picture Frame
High Light:

Galvanized Steel drywall access panel

,

Concealed hinge drywall access panel

,

Concealed hinge metal access panel

Galvanized Steel Ceiling Access Panel Door



Access Panel XC-APS-011

1. Steel sheet access panel for wall or ceiling application

2. White powder-coated finish or coating in special colors, provides high durability and corrosion protection.

3. The four riveted, swiveling wall anchors guarantee a secure hold in walls and ceilings. Adjustable mounting holes and anchors fasten frame to studs, stone, or brick.

4. Concealed snap touch latch.

5. The door leaf can be left or right opened. Concealed hinge mechanism door can be moved out.

6. Simple installation in studs or ceiling. No further painting is required.

7. Good value for all plumbing, electrical, and mechanical applications.

8. Standard sizes from 150 x 150 mm to 600 x 600 mm. Special size available upon request.

Access Panel Description

 Galvanized steel access panel

Galvanized steel access panel is made of 0.8 - 1.0 mm galvanized steel

Rust proof

Regular size from 20x20 - 60x60 cm





1.Steel hinge

Steel hinge with spring on one side

It's flexible to take off the hinge and remove the door

Also the steel stick provide strong powder to support the door weight



2. Four swing tabs

There are four swing tabs for size 30x30 - 60x60

2 tabs for size 20x20

Swing tabs can be adjusted to any direction to fit the wall depth

By fixing screws on the tabs and wall to install the panel



3. Slam lock

Slam lock with square bolt, use a plastic key open.



4. Perfect frame finishing

There is no gap on corners from small size to large size

All from 1 step punching mold

The frame is nice and perfect







Access Panel Standard Sizes

Type
Steel access panel
Size
20x20, 30x30, 40x40, 50x50, 60x60 cm
Open method
Key open
Packaging
5/10 pcs per carton, and then put into pallets from bottom to top
Brand
Xicheng hardware
Loading Port
Shanghai Port
Payment term
T/T 30% in advance, balance before shipping
Lead time
25-35 days depends on order and stock





Quality Control



1. We are committed to pursuing customer satisfaction by delivering world-class quality products and services through continuous improvements and innovations.
2. Our quality management system includes Pre-Production Inspection for raw materials, In-Process Quality Control, Container Loading Supervision (Pre-Shipment Inspection).
3. We have a strong system for traceability and immediate status control to make our production efficient, providing feedback to the product development process.

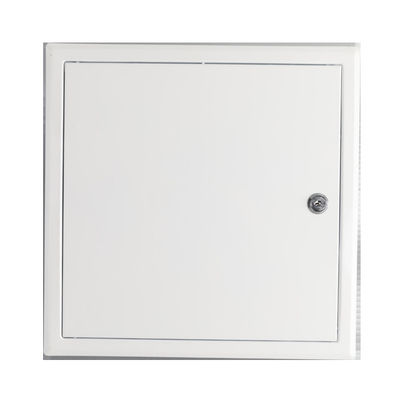

Access Panel Pictures



Galvanized Steel Drywall Access Panel With Concealed Hinge 0Galvanized Steel Drywall Access Panel With Concealed Hinge 1
